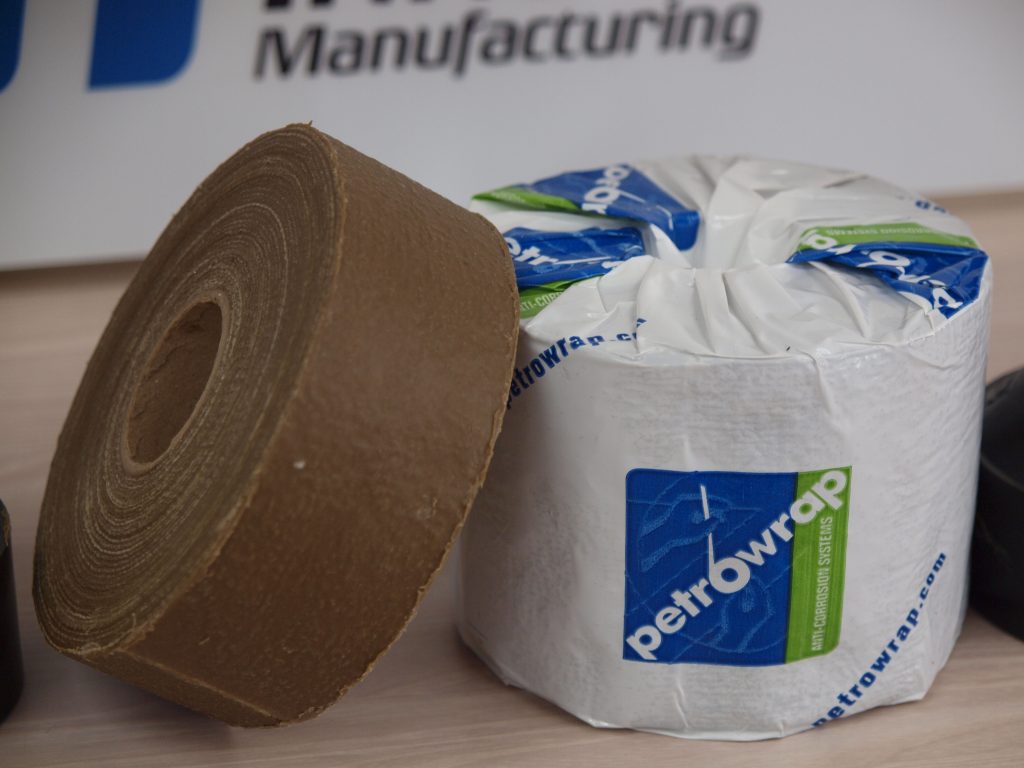

Anti-Corrosion Tape
The PetroWrap Anti-Corrosion System has been developed for long term protection of metal surfaces that are underground, underwater, or exposed even in the most severe environments. It consists of a cold applied system of petrolatum-based PetroWrap Anti-Corrosion Tape, PetroWrap Primer, and, where contouring is necessary, PetroWrap Mastic. PetroWrap adheres to surfaces without heating, even on damp and/or indifferently prepared areas. PetroWrap Overwrap is added protection for the PetroWrap System when physical contact with the system is likely.
Applications
- Steel pipes, flanges and valves
- Welded pipe joints
- Cooling tower piping
- Pipe crossings
- Tank bases
- Waterproofing & sealing
- Fire protection
- Pipe & sprinkler systems
- Electrical connection boxes
- Cable splices
- Hydraulic pipes, valves & fittings
- Marine piling
Specifications
- Can be applied on wire-brushed surfaces
- Repels water, salt, alkalis and acids
- Protects new or corroded surfaces
- Temperature variances from to
- Will not crack, peel or harden
- Non-toxic and environmentally friendly
Certifications
- AWWA/ANSI C217 Standard
- Non Toxic and environmentally friendly (CSA Z245.30 Certified)
- Cathodic Disbondment (NACE RP0375)
- Recommended Practice for Underground Pipelines
| Item code | ISSA | Width | Lenght | Rolls/Box |
| 9170 | 81 24 71 | 50 mm (2″) | 10 m (32.8) | 36 |
| 9171 | 81 24 72 | 100 mm (4″) | 10 m (32.8) | 18 |
| 9172 | 81 24 73 | 150 mm (6″) | 10 m (32.8) | 12 |
| 9173 | 81 24 74 | 200 mm (8″) | 10 m (32.8) | 8 |
The System
- A. PetroWrap Primer Paste is a preparatory primer that displaces moisture, pacifies oxides, and fills small irregularities that occur on the surface to be wrapped with PetroWrap Anti-Corrosion Tape.
- B. PetroWrap Mastic is a cold applied filler which profiles areas to be tape wrapped by easing contours on pipe joints, flanges, bolts, and other irregular shapes to be wrapped with PetroWrap Anti-Corrosion Tape.
- C. PetroWrap Anti-Corrosion Tape consists of a non-woven, stitch bonded, synthetic fabric which has been fully impregnated with neutral petrolatum based compounds and inert fillers.
- D. PetroWrap OverWrap is a 12mm thick, tough adhesive tape. It is available in 50mm and 100mm widths.
